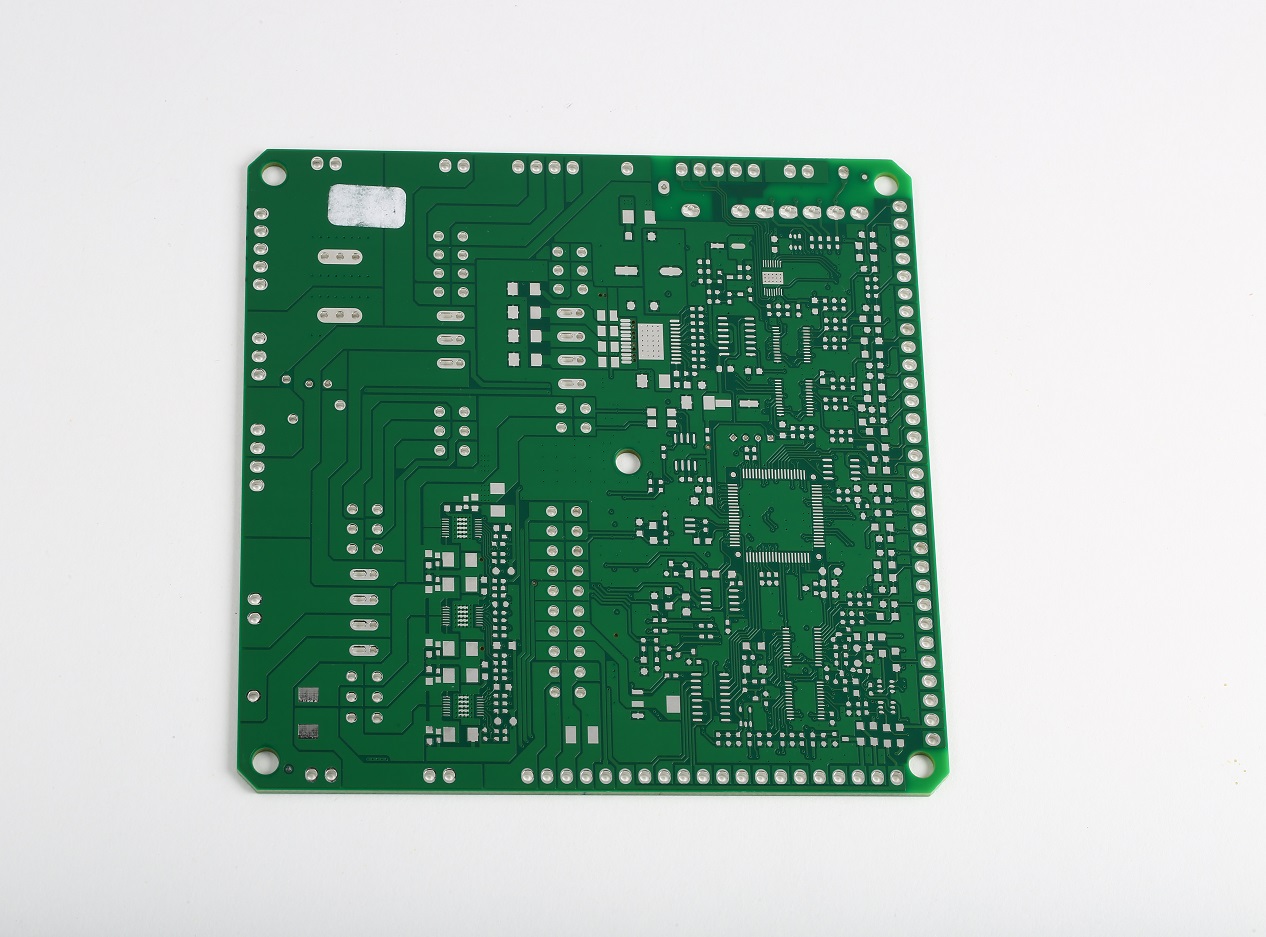

6-layer industrial control through hole circuit board
Discover the 6 - layer industrial control through hole circuit board, a high - performance solution designed specifically for industrial control applications. With six precisely engineered layers, this circuit board offers enhanced functionality and reliability. The through - hole technology ensures stable electrical connections, making it ideal for use in various industrial control systems. Whether you're in the manufacturing, automation, or power management industry, this circuit board can meet your demanding requirements.
Product Description
- Layer Configuration
- The 6 - layer construction provides increased routing space and better signal isolation compared to lower - layer boards. This allows for more complex circuitry designs, which are often required in industrial control applications. Each layer is carefully designed and fabricated to ensure optimal performance.
- Through - Hole Technology
- The through - hole design enables the use of larger and more robust components. It also offers better mechanical stability, which is crucial in industrial environments where the circuit board may be subject to vibrations and physical stress. Components are securely soldered through the holes, providing reliable electrical connections that can withstand harsh operating conditions.
- Industrial Control Applications
- This circuit board is widely used in industrial control systems such as factory automation equipment, power distribution control panels, and industrial robots. It can handle high - voltage and high - current signals, making it suitable for controlling motors, relays, and other power - intensive components. Its compatibility with a variety of sensors and actuators also makes it a versatile choice for different industrial control setups.
- Reliability and Durability
- Built with high - quality materials, the 6 - layer industrial control through hole circuit board is designed to last. It has excellent resistance to temperature variations, humidity, and electromagnetic interference, ensuring stable operation in challenging industrial environments. Rigorous quality control processes are in place during manufacturing to guarantee the highest level of reliability.
- Customization Options
- Manufacturers can offer customization services for this circuit board. Whether you need specific component placements, additional layers for more complex functions, or modifications to the through - hole patterns, customization can be tailored to meet your unique industrial control needs. This flexibility allows you to optimize the circuit board for your specific application.
